Specifications
|
|

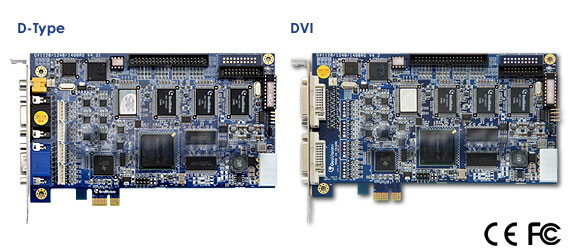

Input Type |
D-Type |
DB15 x 2 (Video); DB9 x 2 (Audio)
|
|
DVI |
DVI x 1 (Video); DVI x 1 (Audio) |
|
Video Input(s) |
8, 16 Cams |
|
Audio Input(s) |
8, 16 Channels |
|
TV Output |
RCA Connector x 1 |
|
Total Recording Rate
At MPEG4 (ASP) |
CIF |
240 fps (NTSC), 200 fps (PAL)
|
|
D1 |
120 fps (NTSC), 100 fps (PAL) |
|
Turbo VGA |
240 fps (NTSC), 200 fps (PAL) |
|
Turbo D1 |
240 fps (NTSC), 200 fps (PAL)
|
|
Display Rate |
CIF |
480 fps (NTSC), 400 fps (PAL) |
|
D1 |
480 fps (NTSC), 400 fps (PAL) |
|
Video Resolution |
NTSC |
720x480, 720x480 De-interlace, 640x480,
640x480 De-interlace, 360x240, 320x240 |
|
PAL |
720x576, 720x576 De-interlace, 640x480,
640x480 De-interlace, 360x288, 320x240 |
|
Video Compression Format |
Geo MPEG4, Geo MPEG4 (ASP), Geo H264, Geo
H264 V2 |
|
Audio Compression Format |
ADPCM codec |
|
GV-Multi Quad Card Support |
Yes |
|
GV-Loop Through Card Support |
Yes |
|
GV-NET/IO Card Support |
Yes |
|
Dimensions (W x H) |
179 x 99 (mm) / 7.04 x 3.89 (in) |
|
Installation Guide |
Single Card & Two Cards |
|
Note: GV-1240A is
currently not compatible with VIA series and ATI series chipset
motherboards. |
|
Minimum System Requirements
For One Card |
|
OS Supported |
32-bit |
Windows XP / Windows Vista / Windows 7 /
Windows Server 2008
|
|
64-bit |
Windows 7 / Windows Server 2008 |
|
CPU |
Pentium 4, 3.0 GHz Dual Core |
|
RAM |
Windows XP: 2 x 512 MB Dual Channels
Windows Vista / 7 / Server 2008: 2 x 1 GB Dual Channels |
|
HDD |
120 GB |
|
VGA |
ATI Radeon X1300 PCI-E /
NVIDIA GeForce 7300 PCI-E |
|
DirectX |
9.0c |
|
Minimum System Requirements For
Two Cards |
|
OS Supported |
32-bit |
Windows XP / Windows Vista / Windows 7 /
Windows Server 2008
|
|
64-bit |
Windows 7 / Windows Server 2008 |
|
CPU |
Core 2 Duo, 2.53 GHz |
|
RAM |
2 x 1 GB Dual Channels |
|
HDD |
250 GB |
|
VGA |
ATI Radeon X1300 PCI-E /
NVIDIA GeForce 7300 PCI-E |
|
DirectX |
9.0c |
|
Minimum System Requirements For
Turbo Mode |
|
Model |
GV-1240A x 1 |
GV-1240A x 2 |
|
CPU |
Core 2 Duo, 3.0 GHz |
Core 2 Quad, 2.8 GHz |
|
RAM |
2 x 512 MB Dual Channels (Windows XP)
2 x 1 GB Dual Channels
(Windows Server 2008 / Vista / 7) |
2 x 1 GB Dual Channels |
|
VGA |
ATI Radeon X1300 PCI-E /
NVIDIA n7300 PCI-E |
ATI Radeon X1300 PCI-E / NVIDIA GeForce
7300 PCI-E |
|
HDD |
160 GB |
320 GB |
| |
|
|
|
Não é compatível com placa mães da chipset séries VIA e séries ATI.
Recomendado Placa Mãe Chip Intel P 41 |
|
Fornecemos Placa + Micro +
Câmeras + Instalação + Configuração de Rede |
