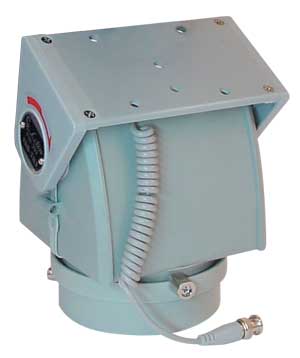

PIH-302 Indoor Pan / Tilt Head

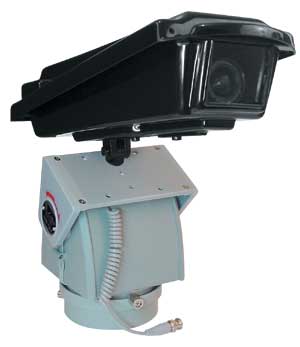

PIH-302 is a lightweight internal Pan & Tilt head for fully functional
cameras. The AC motors are avialable in a wide range of voltages and
provide 6 degree/second panning speed and 4 degree/second tilt.
The pan range is 350 degree can be limited by setting the 2 externally
adjustable end-stops; these also set the range when the Autopan function
is enabled. The top mount head can be titled to 30 degree above
horizontal and 40 degree below horizontal.
Built in video cable management simplifies installation and improves
reliability by providing a flexible curly cable connection to the back
of the camera. This is then routed through the head and comes out as a
BNC video output on the base, preventing video loss through repetitive
cable strain.
The body is constructed from injection moulded ABS and is protected from
the environment by dust-proof seals. The base fixing has a single 1/4
inch UNC thread and can be mounted to a wall with the PIH-5003 wall
bracket. To integrate with Li-Lin domes or matrix system use the PIH-820

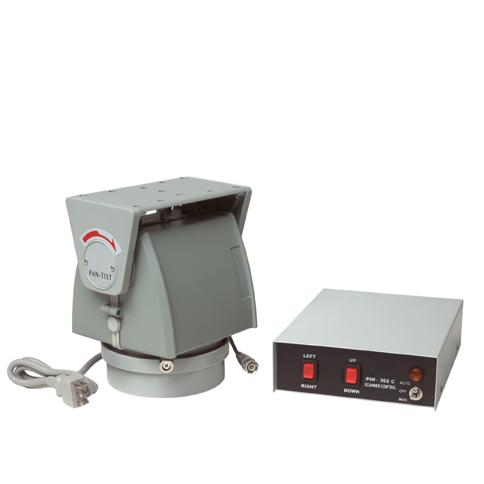

Telemetry Receiver, or the PIH-302C for hardwire control. |
|
| |
|
|
